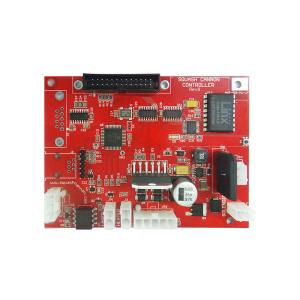

OEM / SMT Service Industrial Pcba Controller Electronic Circuit Board Turnkey Pcb Assembly
FASTPCBA is the sole middle scale pcba assembly factory, with ISO & IATF certificates at the same time, can ensure high quality pcba service for customers of military, automotive, medical, industry, communication, smart home, aerospace etc.
Product Description:
| Article | Description | Capability |
| Sercive | PCB and SMT assembly with one-stop service |
| Material | Laminate materials | FR4, high TG FR4, high frequency, alum, FPC |
| Board cutting | Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) | 0.003”(0.07mm) |
| Board thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” |
| 4layer:0.01±0.008” |
| 8layer:0.01±0.008” |
| Bow and twist | 7/1000 |
| Copper weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) |
| PTH hole tolerance | ±0.002″(0.005mm) |
| NPTH hole tolerance | ±0.002″(0.005mm) |
| Solder mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) |
| Thickness | (0.012*0.017mm) |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) |
| E-test | Function Test | 100% Functional test |
| PCBA Testing | X-ray,AOI Test,Functional test |
| Pcb assembly | one-stop service electronic manufacxturer service |
| Component sourcing | Yes |
| Certificate | IATF16949, ISO13485, ISO9001 |
| Delivery time: | PCB | 3-12days |
| PCBA | 8-20days |
| Tolerance of pcb | ±5% |
| Max size of finish board | 450*450mm |
| MOQ | NO MOQ (1pcs) |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… |
| PCB outline | Square,circle,irregular(with jigs) |
| package | QFN,BGA,SSOP,PLCC,LGA |
| Sub-assembly | Plastic,metal,screen |
FASTPCBA is the high tech pcba factory in shenzhen china over 20 years, our pcba service feature: middle and small batch quick pcb prototype, turnkey pcb assembly, high quality custom pcba manufacturing, original package components procurements etc.
With complete dust free & esd protection smt workshop, FASTPCBA has win trust and support from domestic and abroad customers of industrial control, power communication, medical, automotive etc. All pcba products here abide by ISO9001 & ISO13485 & ISO14000 &IATF16949 certificates, reliable and stable pcb manufacturing and assembly service are assured.
FASTPCBA believes quality derives from profession, reputation wins the future. From grass-roots employees to senior management all concentrate on precise and high quality pcba solutions to provide better service for customers.
