China Customized PCB Manufacturing OEM Electronic Printed Circuit Board
FASTPCBA Detailed PCB Manufacturing Capabilities Are Listed In the Table Below:
| Article | Description | Capability |
| Laminate Materials | FR4, high TG FR4, high frequency, alum, FPC |
| Board Cutting | Number of layers | 1-48 |
Min.thickness for inner layers
(Cu thickness are excluded) | 0.003”(0.07mm) |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” |
| 4layer:0.01±0.008” |
| 8layer:0.01±0.008” |
| Bow and twist | no more than 7/1000 |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) |
| PTH hole tolerance | ±0.002″(0.005mm) |
| NPTH hole tolerance | ±0.002″(0.005mm) |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) |
| Thickness | (0.012*0.017mm) |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) |
| Component Sourcing | Yes |
| Tolerance of PCB | ±5% |
| Max Size of Finish Board | 700*460mm |
| MOQ | NO MOQ (1pcs) |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… |
| PCB Outline | Square,circle,irregular(with jigs) |
| Package | QFN,BGA,SSOP,PLCC,LGA |
| Sub-assembly | Plastic,metal,screen |
| Min Line/Space | 0.075/0.075mm |
FASTPCBA has profuse experience in manufacturing PCB and PCBA. FASTPCBA PCB daily capacity is 1200 square meters, we can deliver the Single sided, Double sided PCB sample within 24 hours, 4-8 layer PCB in 3-5 working days,for the batch quantity for double side PCB,The lead time is 3-5 working days, 4-8 layers is 5-8 days. The quick and fast lead time stably ensures our customer of quick research speed to occupying the market.
PCB Manufacturing Type:
Rigid PCBs, Flexible PCBs, Rigid-flex PCBs, HDI PCBs, Gold-Plated PCBs, High Frequency PCBs, etc.
if there's a type of printed circuit board that can be assembled, we almost surely do it.
FASTPCBA has been selected as the “excellent partner of the year” by numerous well-known enterprises, and won many domestic and authorized certifications at home and abroad, such as Chinese high-tech project certification, ISO9001, ISO14001, ISO13485, IATF16949 quality management system standard and customized CE, UL, FCC and other product certifications according to the customer's requirements.
Millions of circuit boards are produced here every year, which provides superior service for automotive electronics, medical electronics, power communications, industrial automation, intelligent home and other industries around the world. We will continue to improve our quality and service; customer satisfaction and development of science and technology are our eternal motivation.
FAQ:
1, What service do you have?
We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal,final assembly, testing and other value-added service.
2, What is needed for PCB & PCBA quotation?
For PCB: Quantity, Gerber file and technic requirements(material,size, surface finish treatment, copper thickness,board thickness).
For PCBA: PCB information, BOM,Testing documents.
3, How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
4, What are the main products of your PCB/PCBA services?
Automotive, Medical, Industry Control, IOT, Smart Home, Military, Aerospace.
5, What is your minimum order quantity (MOQ)?
Our MOQ is 1 PCS, sample and mass production all can support.
6, Are you factory?
Our factory is located in 1st Building, No. 18-1, Yuquan East Road, Yulv Village, Gongming Street, Guangming New District shenzhen, china.
We are waiting for your response to move forward next step and offer you wanted information, product and service.
Please kindly do me a favor: Fill out the form below, tell me your needs, it is beneficial for both of us.
Product Tags:
|
|

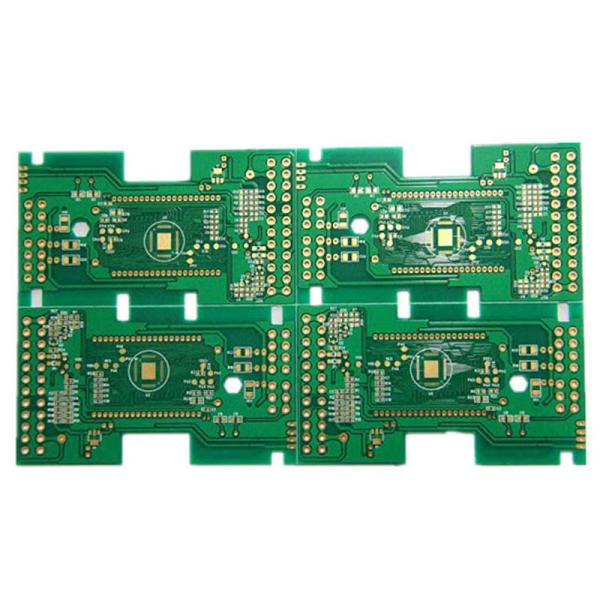

OEM FR4 4oz Electronic Printed Circuit Board Rigid PCB Images
|
